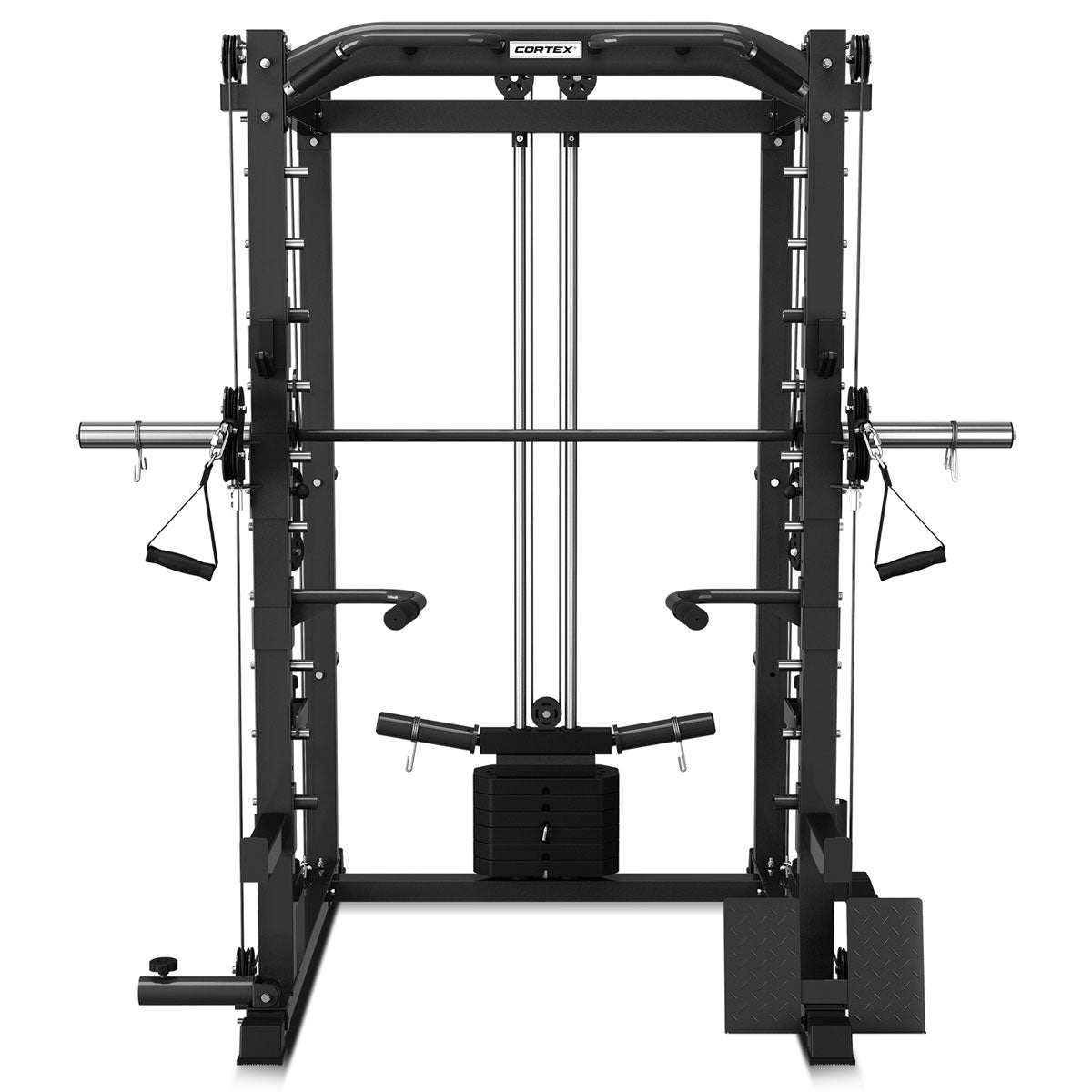

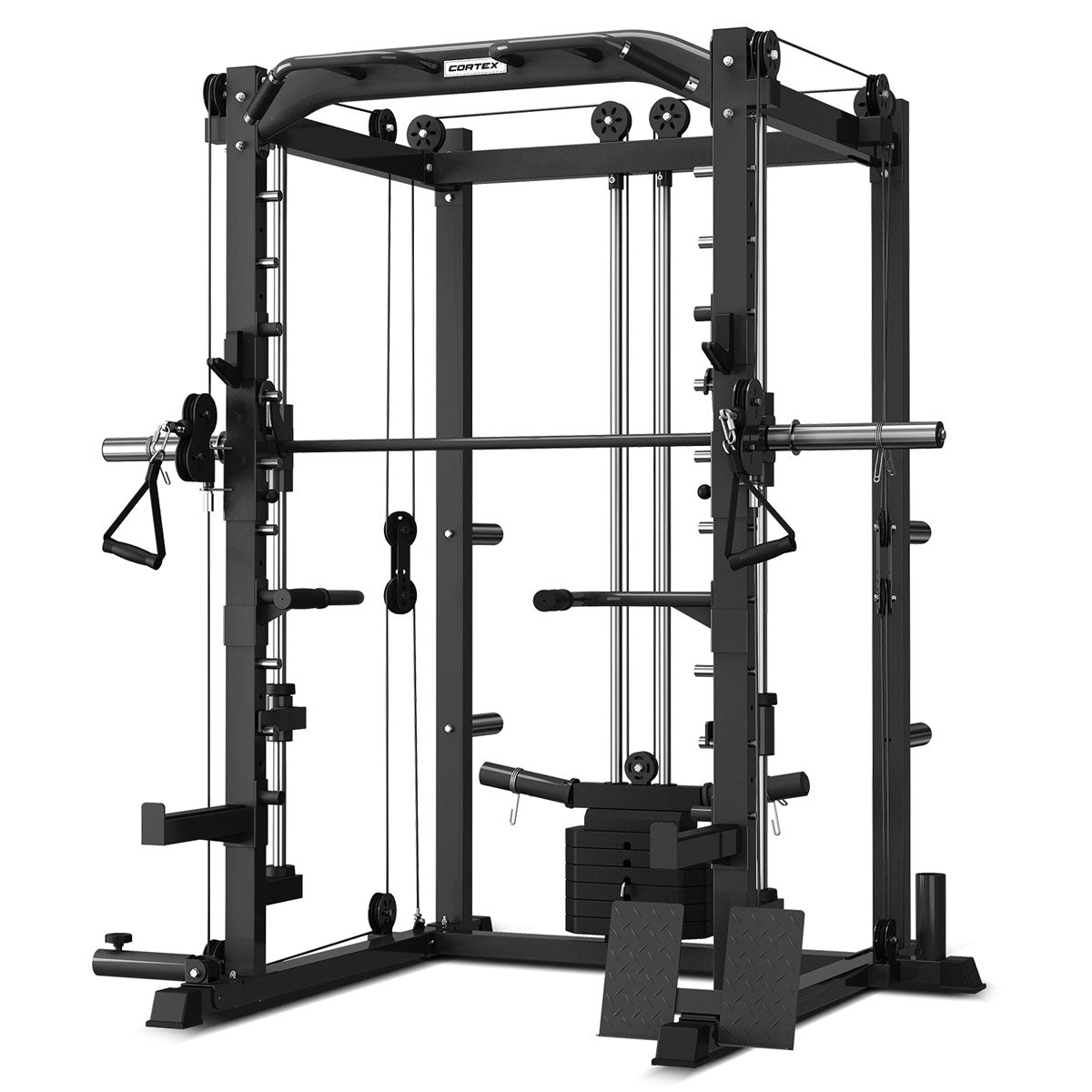

Product Description

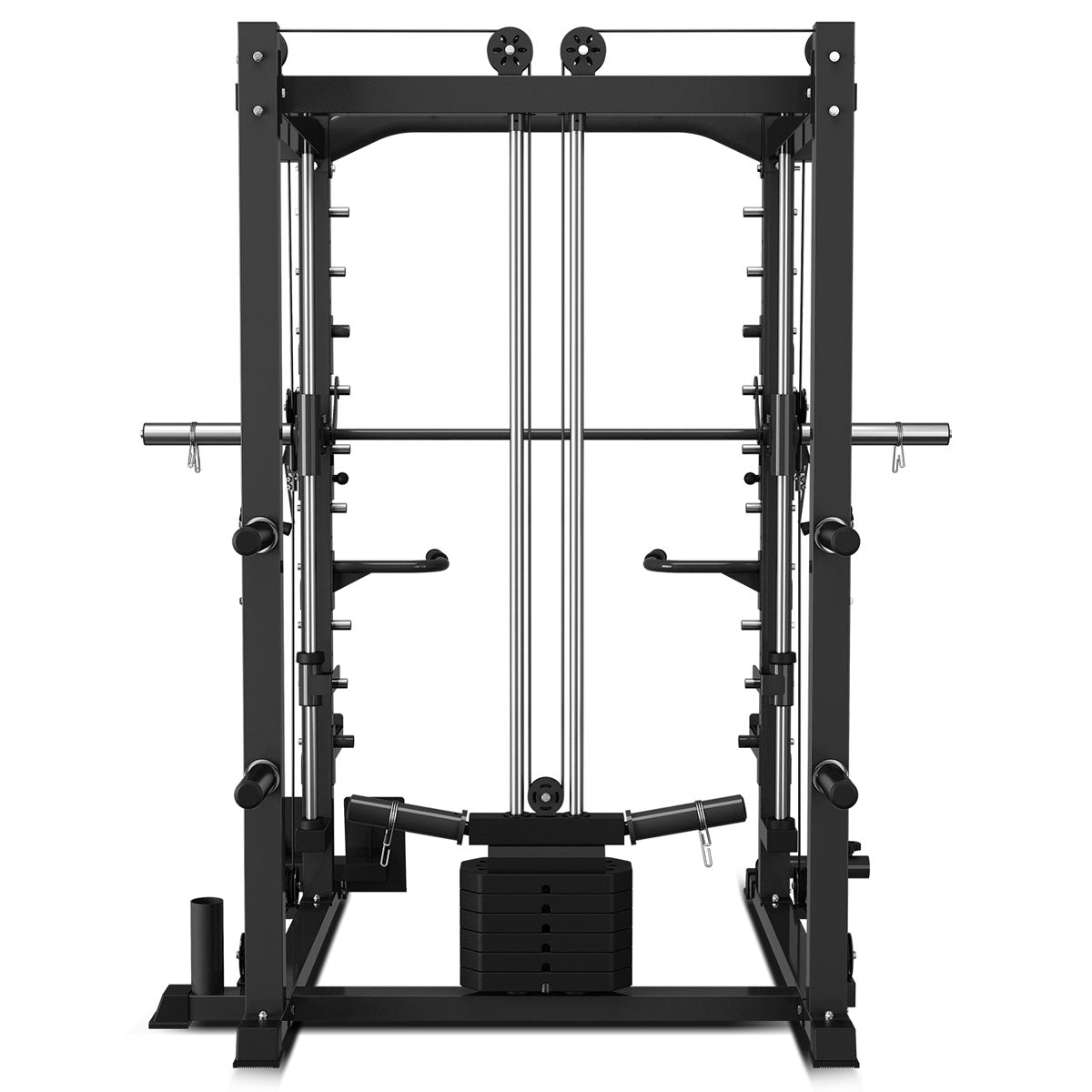

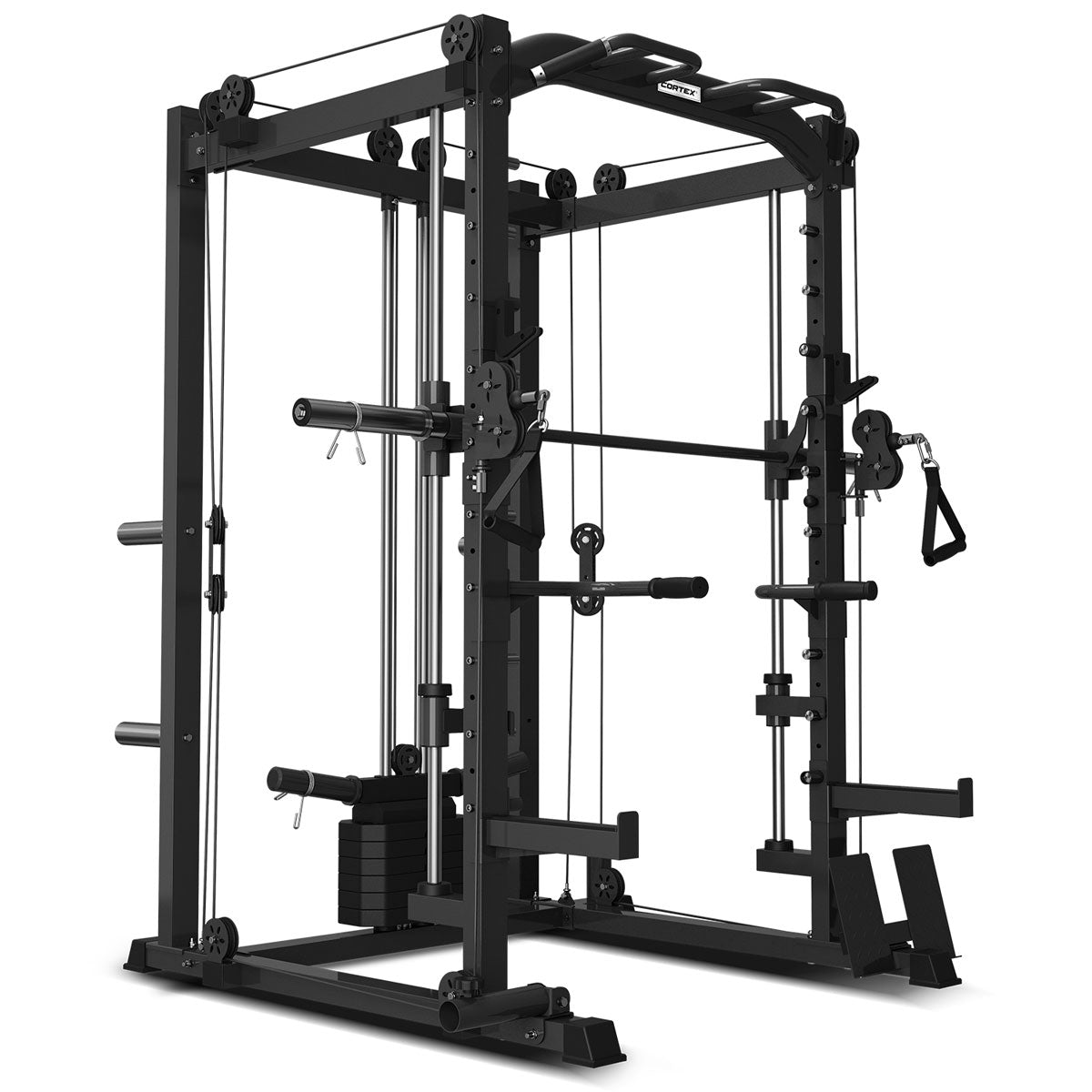

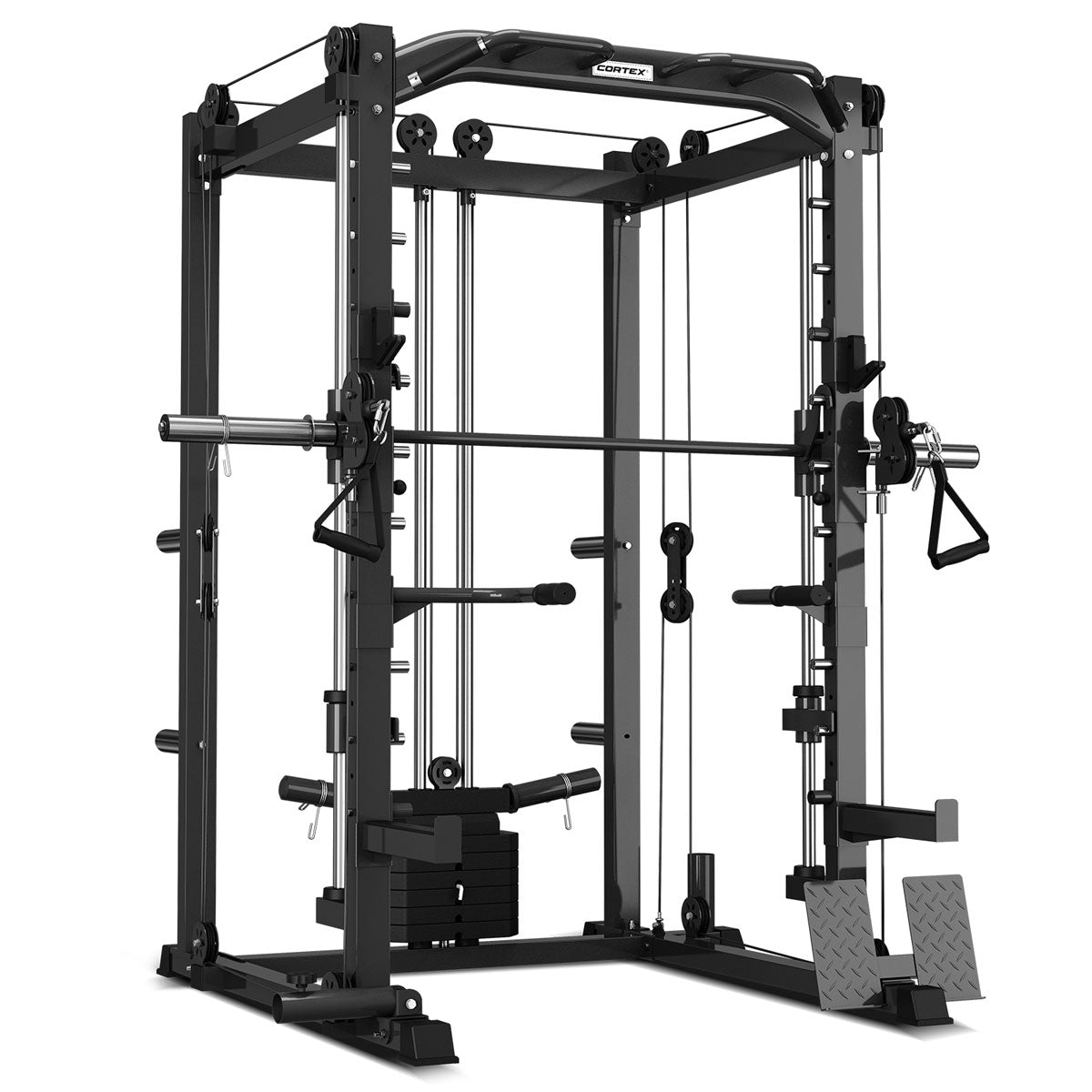

Gear up for the ultimate strength workout on the SM-20 Multi Rack, featuring an all-in-one Half Rack, Smith and Cable Machine. With a huge variety of exercise options and easy to adjust weights you’ll be sure to get a complete strength workout all at the one machine. The SM-20 will keep up with your strength journey with the adjustable weight plate stack and plate options making it perfect for any fitness level. With multiple safety features in place including the smith bar hooking points and safety spot, bar you are set to push yourself to the max.

Our multi-functional gym station allows you to undertake a huge variety of strength workouts all on the one machine. Get a full body workout and target key muscle group with numerous upper and lower body exercises. Add weights to increase the intensity during your training sessions.

Built to Last

Using high quality steel, our SM-20 station uses a solid, commercial inspired frame that will endure the toughest workouts.

The Smith Machine

Push yourself to the limit knowing that multiple safety measures are in place to keep your workout safe. The fitted guide rails keep the bar vertical and linear for smooth and even movements, as well as multiple hooking points. With the SM-20 you can max out your training load without needing a spotter.

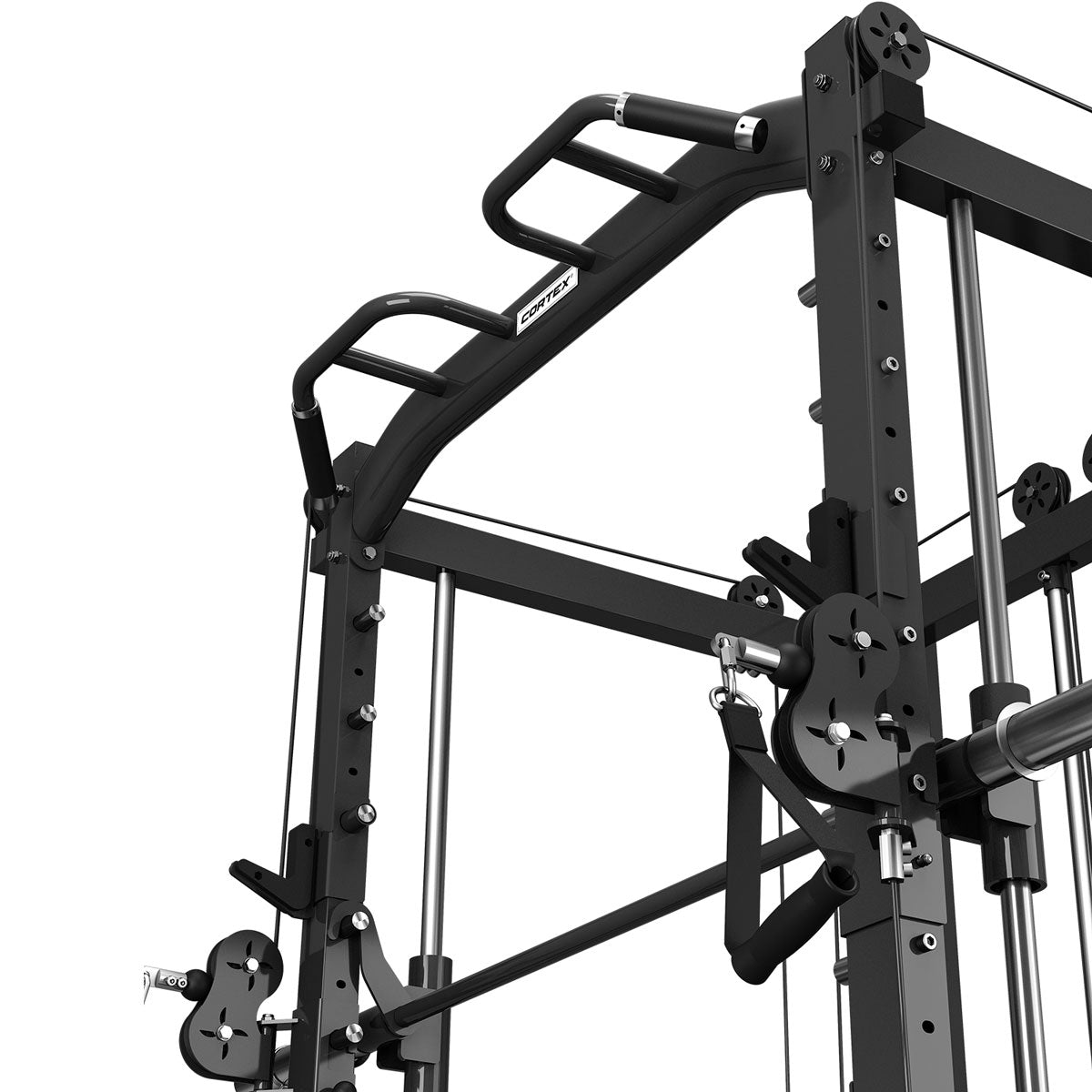

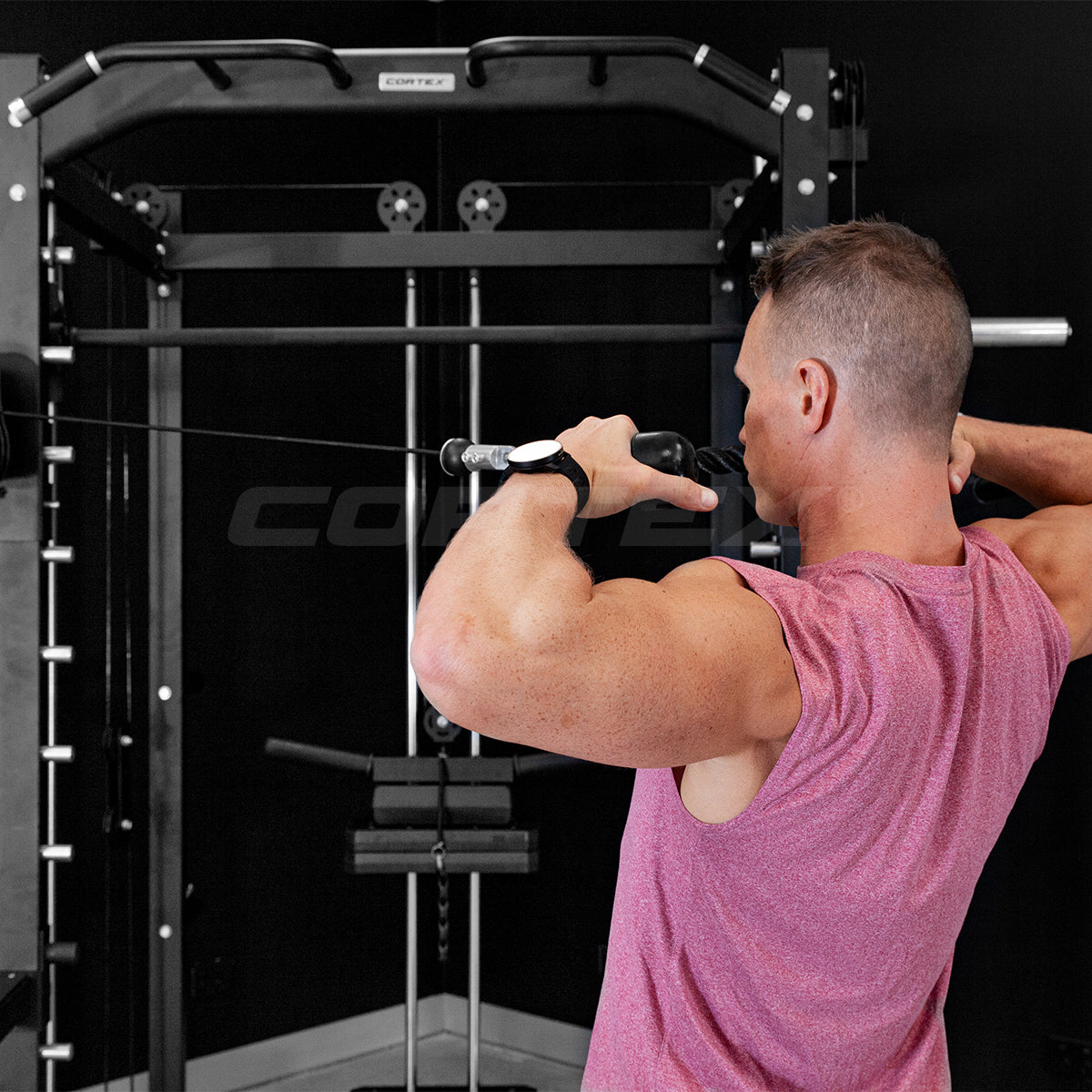

Pivoting Pulleys

The horizontally pivoting pulleys offer unlimited upper and lower body workout options. The heavy-duty cables maintain their strength without jeopardising integrity throughout heavy weight training sessions.

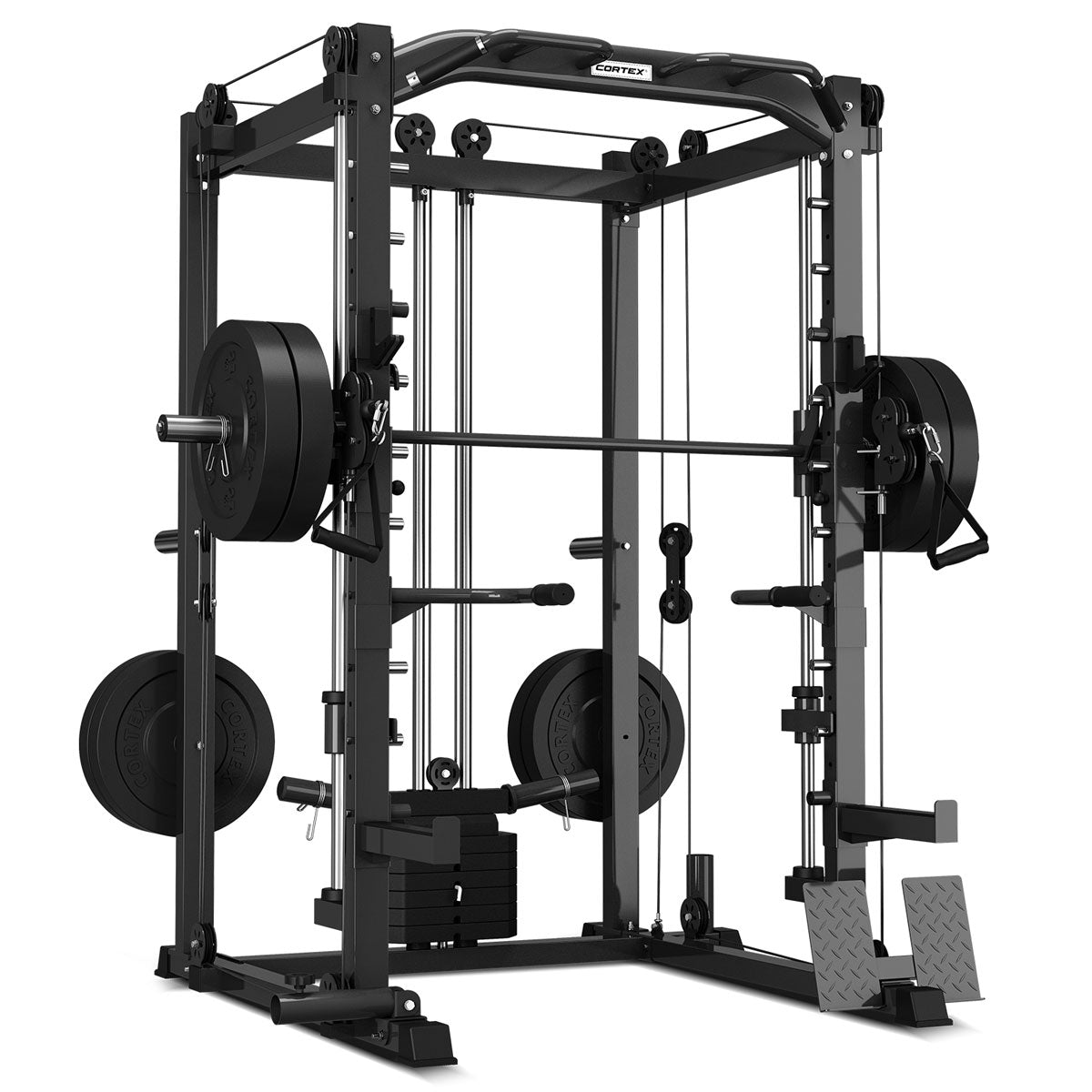

Load

Load up to 100kg

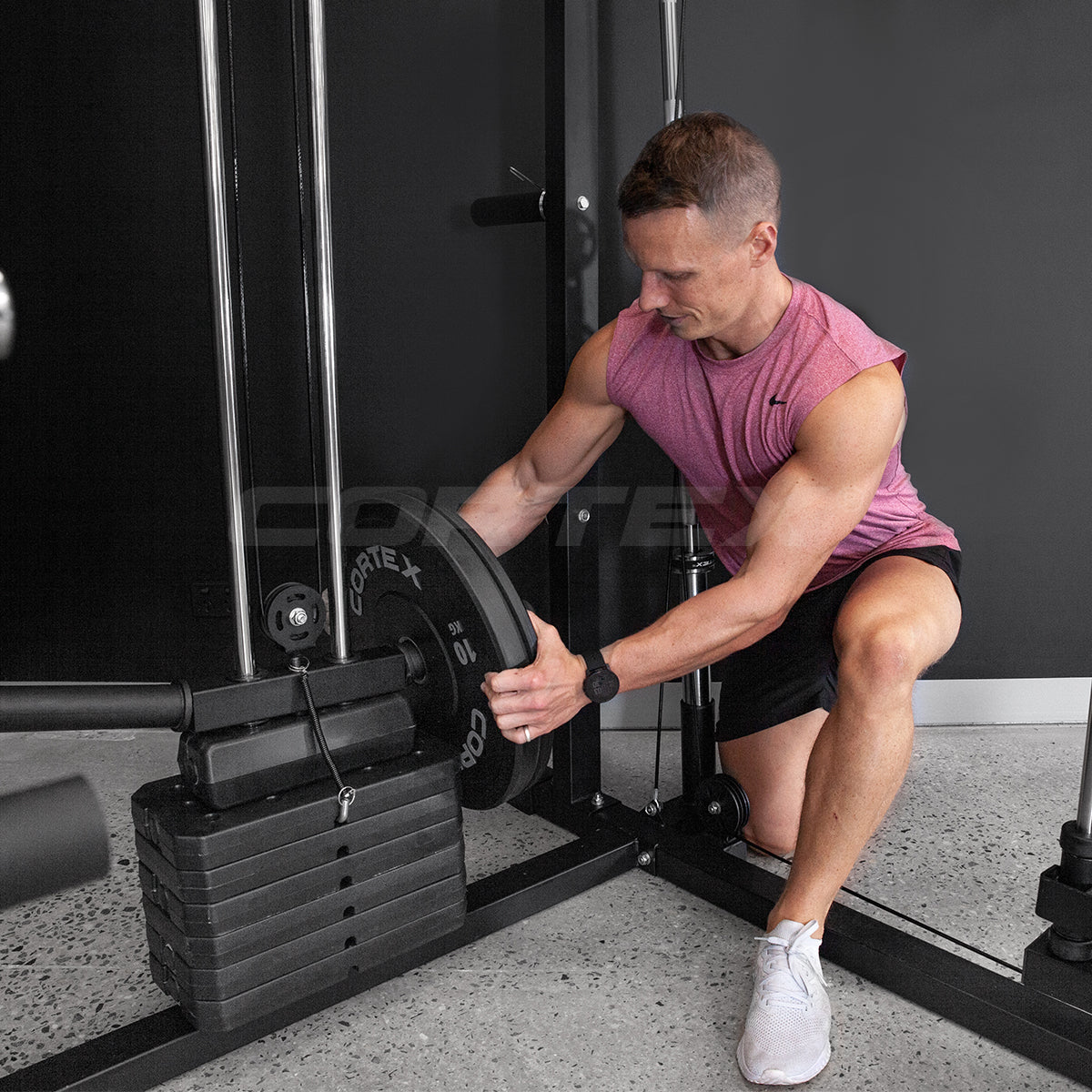

Adjust the intensity of your strength workout with a fully adjustable pin-loaded 45kg weight stack, smooth and easy to change in between sets and workouts. With two olympic/ standard plate horns, you'll be able to add on weights easily, up to an additional 55kg to load up to 100kg for your workouts.

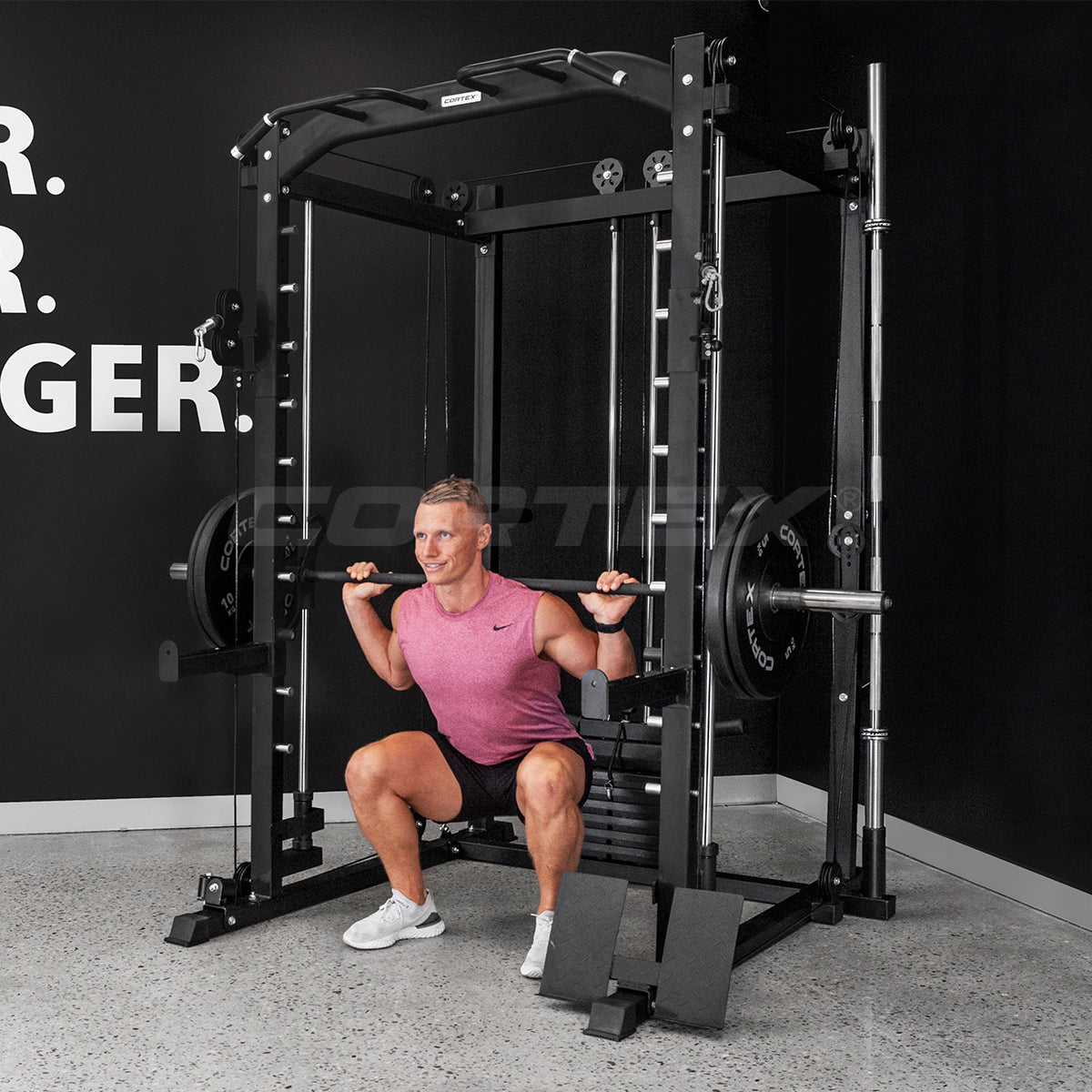

Squat

Squat Rack

Perfect for all your barbell exercises, the SM-20 is suitable for 7ft, Olympic or Standard barbells. Load weights safely with the support of the adjustable J-Hooks and rely on the long Safety Bars to catch the bar if you run out of energy.

Barbell

Barbell & Weight Storage

Keep your weight plates stored conveniently on the power rack with the storage pegs, compatible with Olympic Plates and Standard Plates. Enjoy the ease of access with the upright Olympic Barbell Holder, suitable for 50mm diameter bars.

Interchangeable Attachments Included

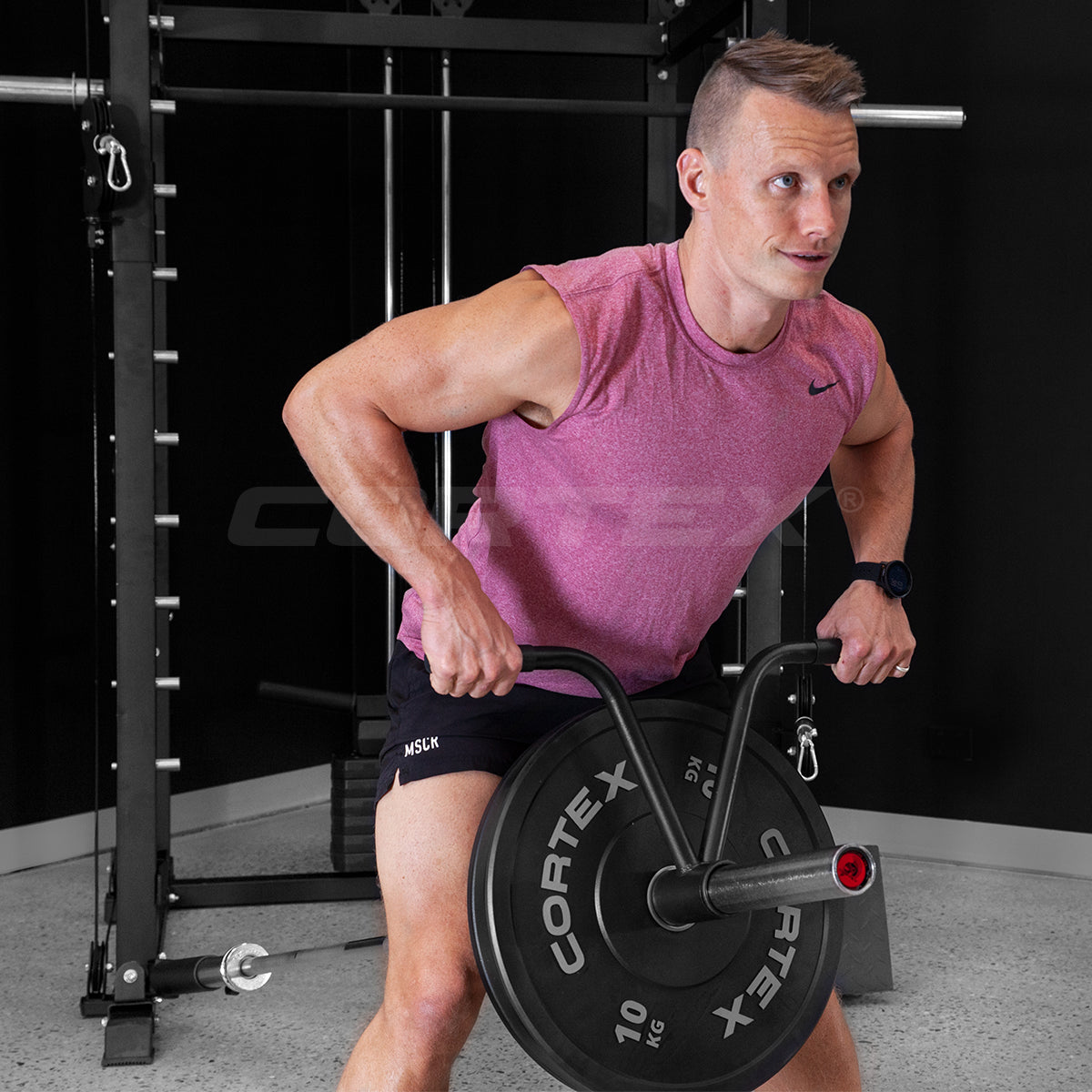

Add variety into your workout by alternating from our standard attachments compatible with our SM-20. Attachments include: Straight Bar, Pulley Handles, Landmine Handle and Lat Pulldown / Curl Bar.

Technical Specifications

Features

  • Multifunctional 6-IN-1 Smith Machine, Power Rack, Barbell Landmine, Chin-up, Dips and Weight Storage.
  • Adjustable cable pulley machine with a 45kg weight stack and additional weight plate intake (25/50 mm weight plate)
  • 203cm Smith Machine/Guided Smith barbell with Olympic 50mm Intakes
  • Cable Ratio: 2:1 - Unilateral Pulley Ratio 0.46; Bilateral Pulley Ratio 0.92
  • Two adjustable safety spotters with rubberised bearing surface

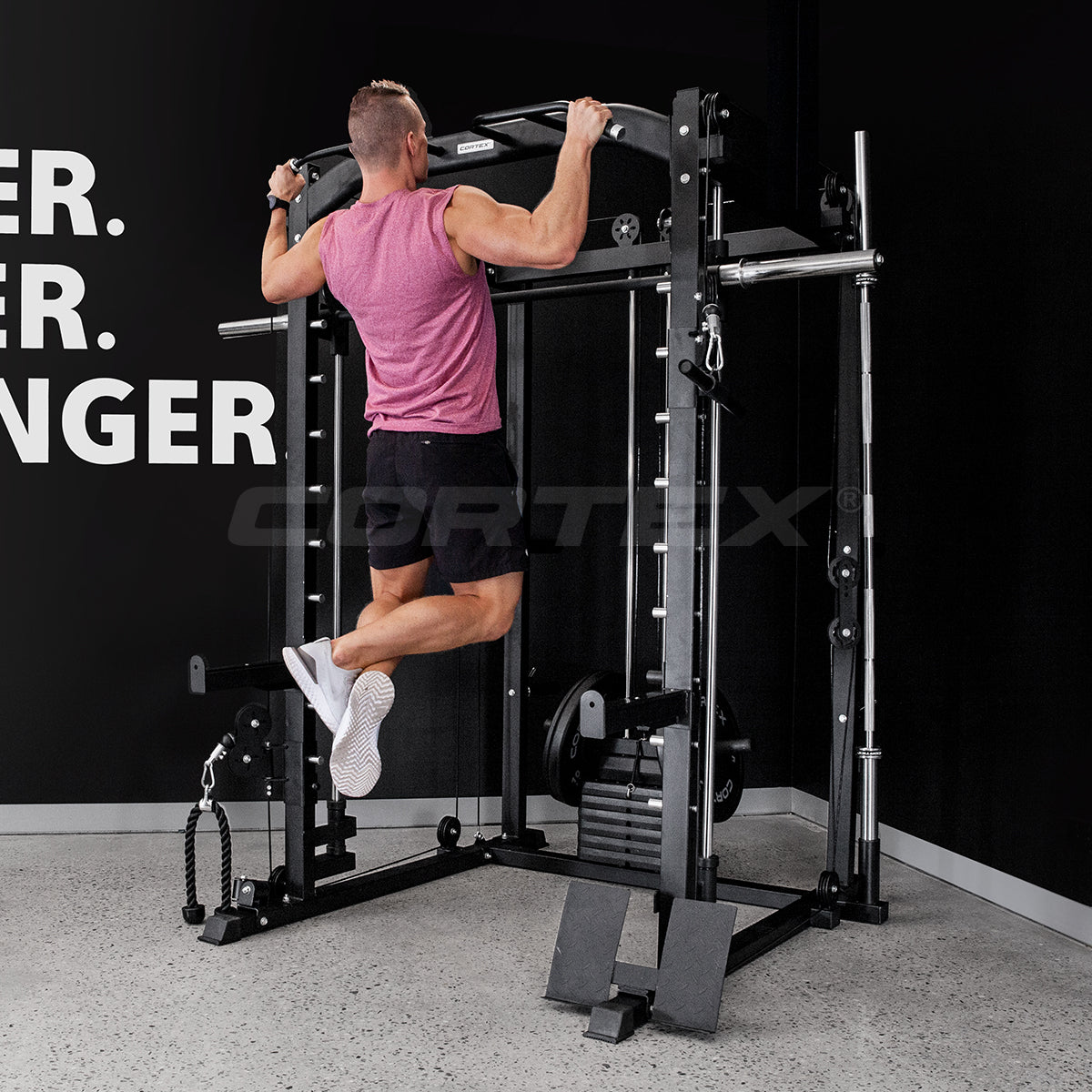

  • Multi-grip double chin-up bar with two handle options

Dimensions and Weight

Packaging Size Carton 1: 211.5cm x 34cm x 18.5cm (L x W x H), 41kg
Carton 2: 211.5cm x 34cm x 18.5cm (L x W x H), 40kg
Carton 3: 119cm x 43.5cm x 18cm (L x W x H), 38kg
Carton 4: 139.5cm x 41.5cm x 18cm (L x W x H), 39kg
Carton 5: 38.5cm x 20cm x 27cm (L x W x H), 34kg
Occupancy Size 203cm x 170.4cm x 211cm (L x W x H)
Other Measurements Bottom Feet Only: 160cm x 150cm (L x W)
Rear Weight Storage Column Length: 28cm
Net Weight 181kg

Structure & Technical

  • 10 height positions for safety spotter, J-hooks
  • 10 height positions smith machine bar
  • Smith barbell weight: 16kg
  • 350mm long safety spotter arm
  • Height Adjustable Dip Bars (can be taken off)

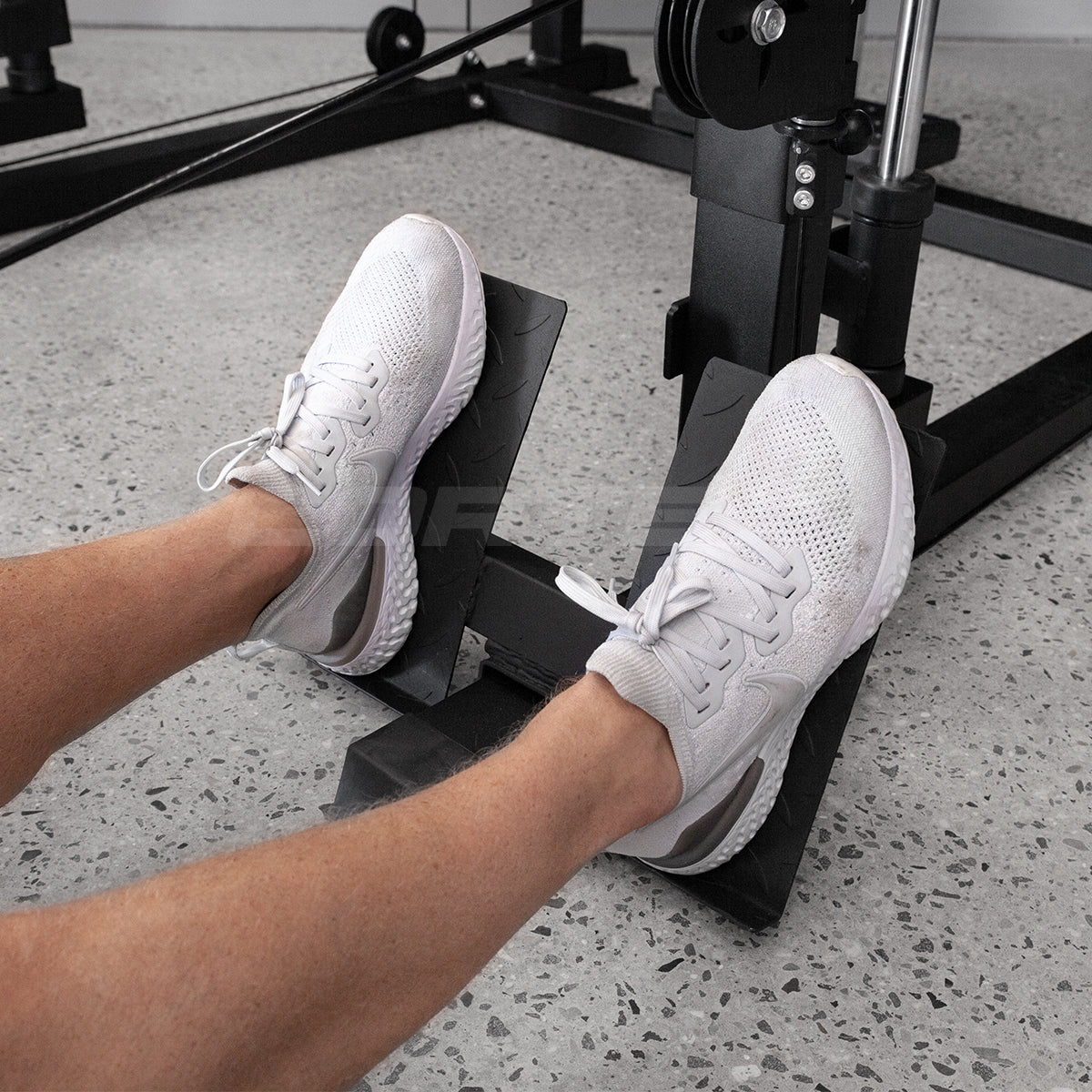

  • Foldable Foot Plates
  • Height Adjustable Smith Machine Spotter
  • Two J-Hooks with rubber bearing surface
  • Weight Stack Weights: 1x Top plate with Rod 5.8kg, 1x Small Plate 5kg, 6x Large Plate 5.7kg
  • 4 Weight Storage Pegs (50mm plates only), 50kg per post
  • Material: powder-coated 16-gauge steel (1.5mm)
  • Load-bearing capacity control cable: max. 100 kg per side
  • Load-bearing capacity safety spotter: max. 200 kg
  • Load-bearing capacity J-hooks: max. 180 kg
  • Load-bearing capacity weight disc holder 50 kg
  • Load-bearing capacity pull-up bar: max. 200 kg
  • Load-bearing dip handles: 120kg
  • Load-bearing capacity Smith barbell: 150kg
